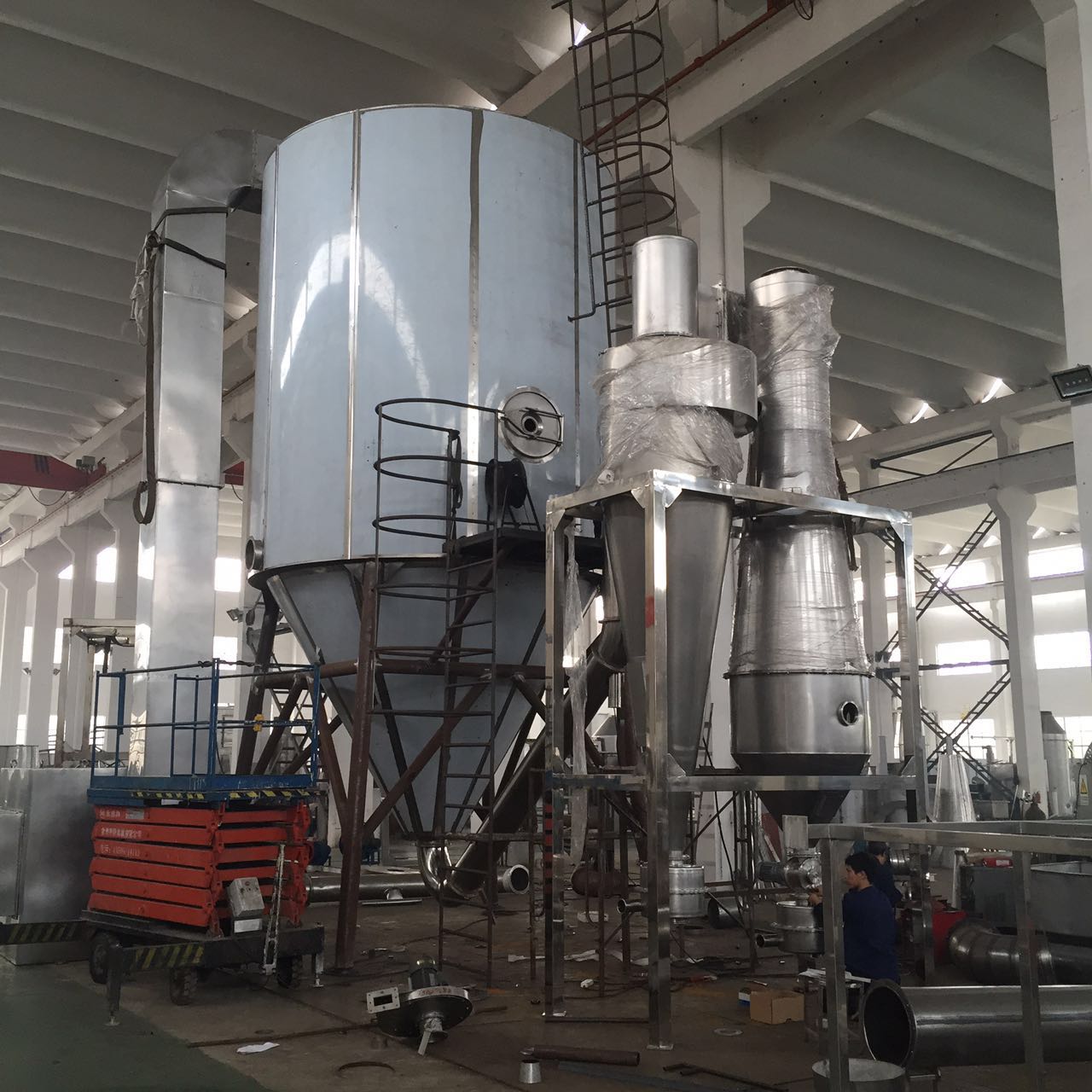

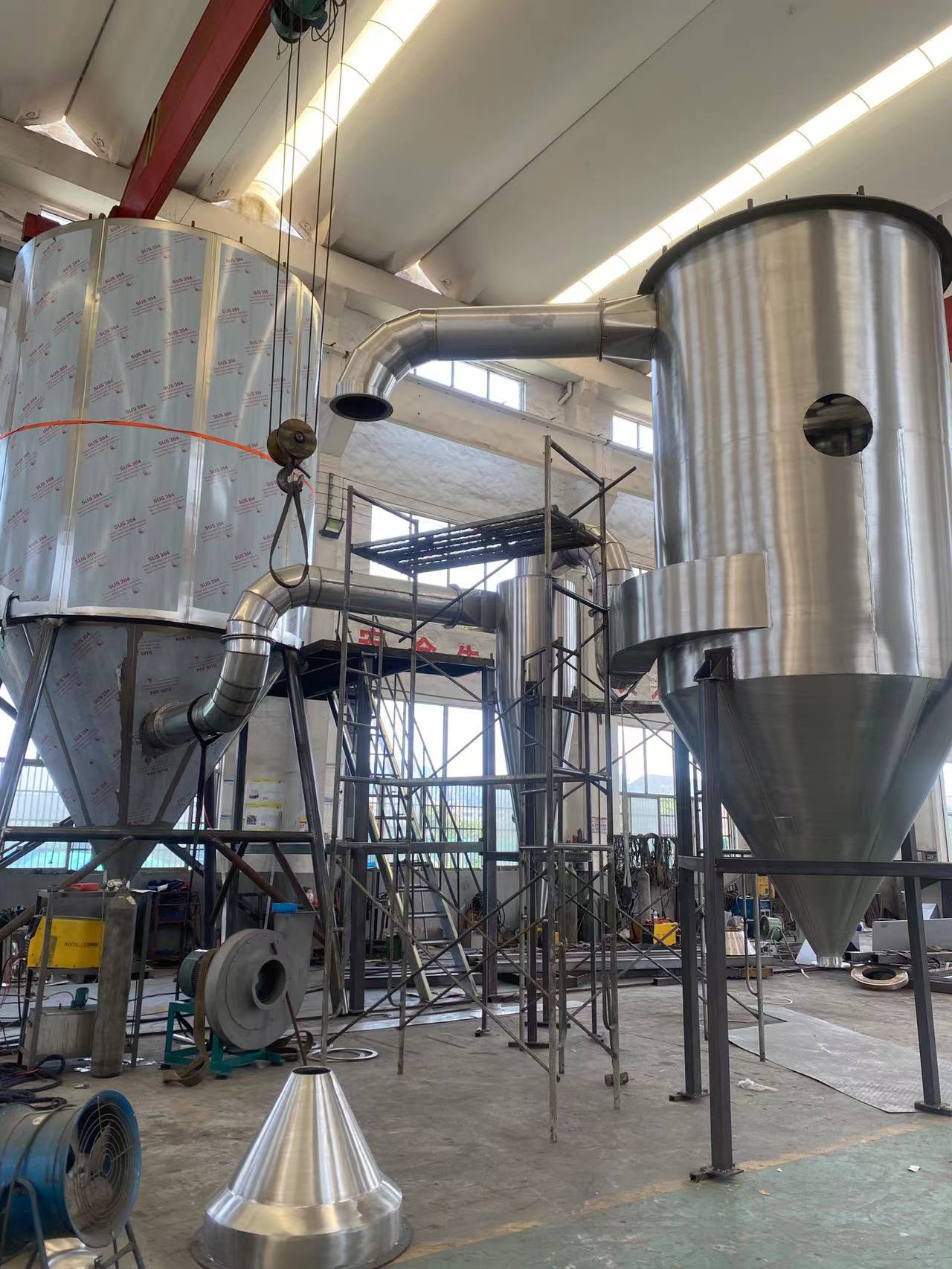

Product Overview:
Liquid spray drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products. Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.
空气经过过滤器和加热装置后，进入干燥室顶部的热风分配器，通过风分配器的热空气螺呈旋状均匀地进入干燥室，同时由泵将料液送到装在干燥室顶部的离心喷雾头，料液被喷成极小的雾状液滴，使料液和热空气接触的比表面积大大增加。小液滴和热风并流下沉，水份迅速蒸发在极短的时间内被干燥为颗粒制品，在旋风分离器中捕集，废气排发至外界。
After passing through the filter and the heating device, the air enters the hot air distributor at the top of the drying chamber,and enters into the drying chamber evenly and spirally through the hot air screw of the air distributor. At the same time, the feed liquid is sent by the pump to the centrifugal spray installed at the top of the drying chamber and then sprayed into tiny vaporous droplets, which make the specific surface area of the feed liquid in contact with hot air greatly increase. When small droplets and hot air sink with current flow, the water would rapidly evaporate and be dried into granular products in a very short time and be trapped in a cyclone separator. As a result, the exhaust gas is discharged to the outside world.
Technological process
Features
小型离心喷雾干燥机定位于浓缩液、萃取液、稀释液等液体料的实验、小试、中试之用。
该设备主要由初中效过滤器、高温高效过滤器、电加热箱、喷雾塔主体、变频雾化器、旋风分离器、引风机、热风管、电控箱、吹扫传动、冷风二次输送等组成。所有部件集中在一框架上，框架底部带有轮子，方便移动。接口简单，只需接通电源，压缩空气即可使用。
The small-scale centrifugal spray dryer is used for the experiment, small-scale tests and middle-scale tests of the liquid materials such as concentrates, extracts, and diluents.
The equipment is generally composed of the filter with elementary & middle efficiency, the filter with high temperature & efficiency, electric heating box, spray tower body, the atomizer with variable frequency, cyclone separator, induced draft fan, hot air pipe, electric control box, purge drive, and cold air with secondary transport, etc. All the components are concentrated on a frame with wheels on the bottom for easy movement. The interface is simple since the compressed air could be put into use just by turning on the power.
三、工作优势与特点：
1、生产过程简化，操作控制方便，多种物料适用一台喷雾干燥机，设备所有连接采用卫生级快开，拆装清洗方便。
The production process is simplified and the operation control is convenient. A spray dryer is suitable for various materials. Equipment is used to connect all the health level of quick opening, dismantling convenient cleaning.
LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2、完成干燥时间仅需数秒钟，进料到出料持续1.5-4S，特别适用于热敏性液体物料的干燥。
The uniformity, flow capability & solubility of the dryer are very good. It is especially suitable for the drying of heat-sensitive liquid materials.
3、干燥速度快，料液经雾化后表面积大大增加，瞬间就可蒸发90%-97%的水份.
The drying speed is rapid. When liquid raw material is atomized, the surface of the material will be enlarged greatly. 95% - 98% of water can be evaporated instantly in the hot airflow and the drying is only a few seconds.
4、对于含湿量40-60%(特殊物料可达90%)的液体能一次干燥成粉粒产品，干燥后不需粉碎和筛选，提高产品纯度。
The dryer can dry the liquid material which contains 40%-60%(90% for special materials) of moisture into powder at once. There’s no need for smashing or sieving after drying. It improves purity.
5、 高效雾化器采用变频调速，带水冷却功能，雾化盘采用304全不锈钢，雾化盘直径：50mm，雾化器转速：0-30000rpm；
6、料液泵采用名优蠕动泵，实现恒流恒速送料。输送管路为φ17食品级硅胶管。
7、特殊的冷风扫壁装置，气扫管水平旋转的同时轻微上下运动，改善了斑马纹的出现。
化学工业: 催化剂， 硫酸剂，氨基酸，白碳黑，氟化钠，染料颜料，染料中间体，复合肥，甲醛硅酸等。
Chemical Industry: sodium fluoride (K), basic dyes pigments, dyes intermediates, fertilizer, formaldehyde acid, catalyst, of sulfuric acid, amino acids, such as carbon black white.
塑料树脂: AB，ABS乳液，尿醛树脂，酚醛树脂， 密胶（脲）甲醛树脂、聚乙烯，聚氯乙烯等。
Plastic Resin: AB, ABS emulsion, urine-formaldehyde resins, phenol-formaldehyde resin, of plastic (urea) formaldehyde resins, polyethylene, polyvinyl chloride, etc..
食品工业: 富脂奶粉，胳朊，可可奶粉，代乳粉，蛋清（黄），白血球。
Food industry: the rich fat milk, Ga prion, cocoa, milk, milk substitute, White blood cells, eggs white (Yellow).
食物及植物汁： 燕麦，鸡汁，咖啡、速溶茶，调味香料，肉，蛋白质，大豆，花生蛋白质，水解物等。
Food and plants: oats, Chicken juice, coffee, instant tea, spices seasoning meat, protein, soybean, peanut protein, such as hydrolysate.
糖类： 玉米浆，玉米淀粉，葡萄糖，果胶，麦芽糖，山梨酸钾等。
Carbohydrates: corn pulp, corn starch, glucose, pectin, maltose, such as potassium sorbate.
陶瓷: 氧化铝，瓷砖材料，氧化镁，滑石，陶瓷粉等。
Ceramic: alumina, ceramic tile materials, magnesia, such as talc.
Pharmaceutical industry: Including all kind of Active Pharmaceutical Ingredients etc.
五、技术数表：
Technical parameters
注：部分参数设计时视不同物料有所调整，以设计为准。
Notes: The evaporated amount of moisture is concerned with characteristics of raw material. Solid content and temperature of hot air inlet and outlet .Customers can choose the way of heating in accordance with the conditions of local energy source and the way of dust removing in accordance with the conditions of raw material.
Liquid spray drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products. Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.
- 工作原理：
空气经过过滤器和加热装置后，进入干燥室顶部的热风分配器，通过风分配器的热空气螺呈旋状均匀地进入干燥室，同时由泵将料液送到装在干燥室顶部的离心喷雾头，料液被喷成极小的雾状液滴，使料液和热空气接触的比表面积大大增加。小液滴和热风并流下沉，水份迅速蒸发在极短的时间内被干燥为颗粒制品，在旋风分离器中捕集，废气排发至外界。
After passing through the filter and the heating device, the air enters the hot air distributor at the top of the drying chamber,and enters into the drying chamber evenly and spirally through the hot air screw of the air distributor. At the same time, the feed liquid is sent by the pump to the centrifugal spray installed at the top of the drying chamber and then sprayed into tiny vaporous droplets, which make the specific surface area of the feed liquid in contact with hot air greatly increase. When small droplets and hot air sink with current flow, the water would rapidly evaporate and be dried into granular products in a very short time and be trapped in a cyclone separator. As a result, the exhaust gas is discharged to the outside world.
Technological process
Features
- 结构原理：
小型离心喷雾干燥机定位于浓缩液、萃取液、稀释液等液体料的实验、小试、中试之用。
该设备主要由初中效过滤器、高温高效过滤器、电加热箱、喷雾塔主体、变频雾化器、旋风分离器、引风机、热风管、电控箱、吹扫传动、冷风二次输送等组成。所有部件集中在一框架上，框架底部带有轮子，方便移动。接口简单，只需接通电源，压缩空气即可使用。
The small-scale centrifugal spray dryer is used for the experiment, small-scale tests and middle-scale tests of the liquid materials such as concentrates, extracts, and diluents.
The equipment is generally composed of the filter with elementary & middle efficiency, the filter with high temperature & efficiency, electric heating box, spray tower body, the atomizer with variable frequency, cyclone separator, induced draft fan, hot air pipe, electric control box, purge drive, and cold air with secondary transport, etc. All the components are concentrated on a frame with wheels on the bottom for easy movement. The interface is simple since the compressed air could be put into use just by turning on the power.
三、工作优势与特点：
1、生产过程简化，操作控制方便，多种物料适用一台喷雾干燥机，设备所有连接采用卫生级快开，拆装清洗方便。
The production process is simplified and the operation control is convenient. A spray dryer is suitable for various materials. Equipment is used to connect all the health level of quick opening, dismantling convenient cleaning.
LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2、完成干燥时间仅需数秒钟，进料到出料持续1.5-4S，特别适用于热敏性液体物料的干燥。
The uniformity, flow capability & solubility of the dryer are very good. It is especially suitable for the drying of heat-sensitive liquid materials.
3、干燥速度快，料液经雾化后表面积大大增加，瞬间就可蒸发90%-97%的水份.
The drying speed is rapid. When liquid raw material is atomized, the surface of the material will be enlarged greatly. 95% - 98% of water can be evaporated instantly in the hot airflow and the drying is only a few seconds.
4、对于含湿量40-60%(特殊物料可达90%)的液体能一次干燥成粉粒产品，干燥后不需粉碎和筛选，提高产品纯度。
The dryer can dry the liquid material which contains 40%-60%(90% for special materials) of moisture into powder at once. There’s no need for smashing or sieving after drying. It improves purity.
5、 高效雾化器采用变频调速，带水冷却功能，雾化盘采用304全不锈钢，雾化盘直径：50mm，雾化器转速：0-30000rpm；
6、料液泵采用名优蠕动泵，实现恒流恒速送料。输送管路为φ17食品级硅胶管。
7、特殊的冷风扫壁装置，气扫管水平旋转的同时轻微上下运动，改善了斑马纹的出现。
- 喷雾干燥技术的应用：
化学工业: 催化剂， 硫酸剂，氨基酸，白碳黑，氟化钠，染料颜料，染料中间体，复合肥，甲醛硅酸等。
Chemical Industry: sodium fluoride (K), basic dyes pigments, dyes intermediates, fertilizer, formaldehyde acid, catalyst, of sulfuric acid, amino acids, such as carbon black white.
塑料树脂: AB，ABS乳液，尿醛树脂，酚醛树脂， 密胶（脲）甲醛树脂、聚乙烯，聚氯乙烯等。
Plastic Resin: AB, ABS emulsion, urine-formaldehyde resins, phenol-formaldehyde resin, of plastic (urea) formaldehyde resins, polyethylene, polyvinyl chloride, etc..
食品工业: 富脂奶粉，胳朊，可可奶粉，代乳粉，蛋清（黄），白血球。
Food industry: the rich fat milk, Ga prion, cocoa, milk, milk substitute, White blood cells, eggs white (Yellow).
食物及植物汁： 燕麦，鸡汁，咖啡、速溶茶，调味香料，肉，蛋白质，大豆，花生蛋白质，水解物等。
Food and plants: oats, Chicken juice, coffee, instant tea, spices seasoning meat, protein, soybean, peanut protein, such as hydrolysate.
糖类： 玉米浆，玉米淀粉，葡萄糖，果胶，麦芽糖，山梨酸钾等。
Carbohydrates: corn pulp, corn starch, glucose, pectin, maltose, such as potassium sorbate.
陶瓷: 氧化铝，瓷砖材料，氧化镁，滑石，陶瓷粉等。
Ceramic: alumina, ceramic tile materials, magnesia, such as talc.
Pharmaceutical industry: Including all kind of Active Pharmaceutical Ingredients etc.
五、技术数表：
Technical parameters
| Item/ Parameter | Type：LPG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| Inlet temperature |
140~350 3/5000 self-control |
|||||
| Outlet temperature(℃) | ~80-90 | |||||
|
Max evaporated zmount of moisture(kg/h ) |
5 | 25 | 50 | 100 | 150 | 200-2000 |
| Fog head rotation form | Compressed air drive |
Mechanical drive |
||||
|
Revolution Of atomizer（r.p.m） |
25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
|
Diameter of atomizer （mm） |
50 | 100 | 120 | 140 | 150 | 180-340 |
| Heating source | electricity | Electricity + steam | Electricity + steam, fuel oil, gas | It's up to the user | ||
|
Power of electric heating(KW ) |
9 | 36 | 63 | 81 | 99 | |
|
Overall dimension （m） |
1.8×0.93×2.2 | 3×2.7×4.26 | 3.7×3.2×5.1 | 4.6×4.2×6 | 5.5×4.5×7 | According to the actual situation |
|
Dry powder recovery(% ) |
≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
Notes: The evaporated amount of moisture is concerned with characteristics of raw material. Solid content and temperature of hot air inlet and outlet .Customers can choose the way of heating in accordance with the conditions of local energy source and the way of dust removing in accordance with the conditions of raw material.
